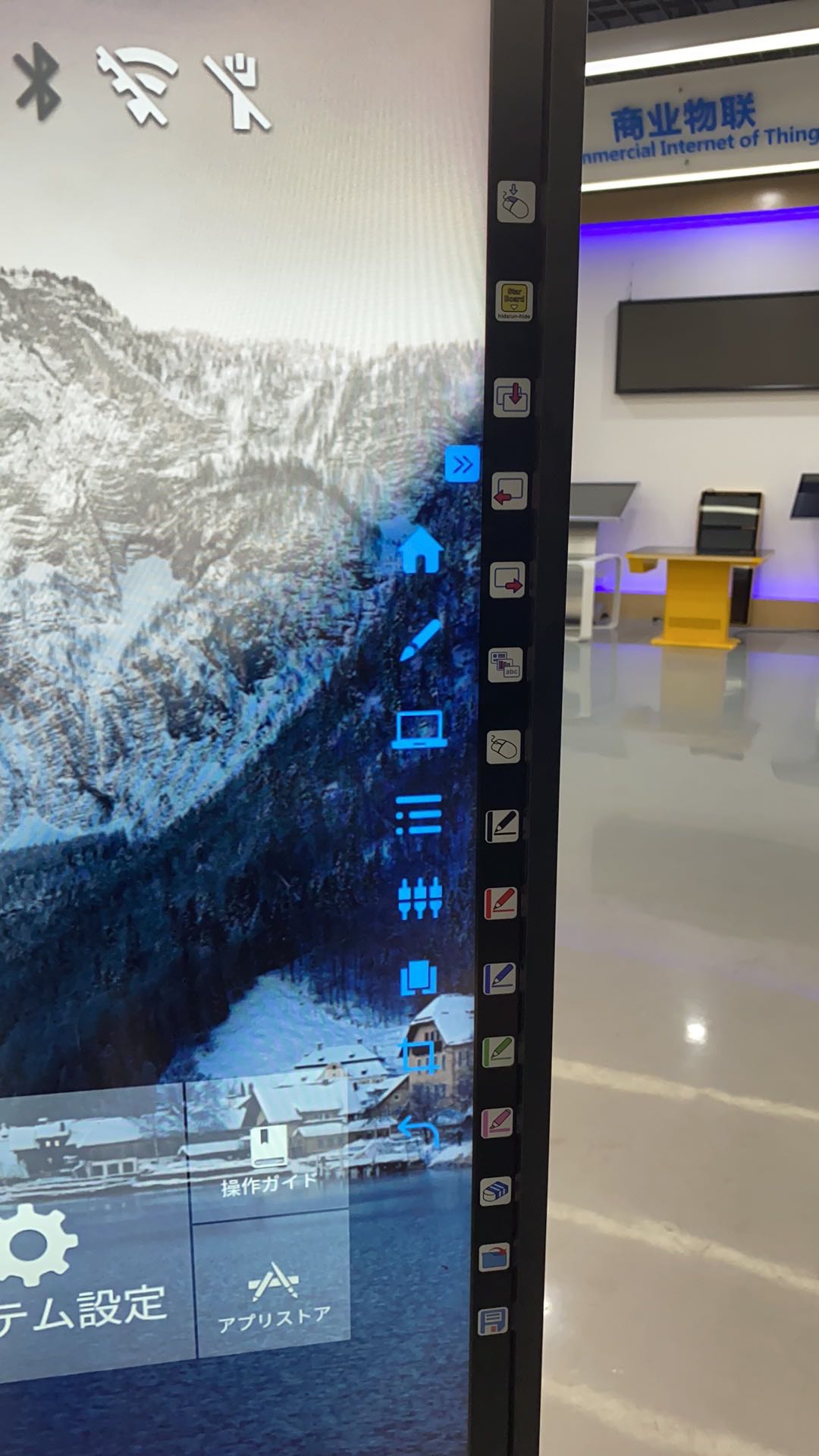

DLED Interactive Multi Touch Display 4mm Tempered Anti Glare Glass

  • 1
  • 2

Brand Name : iBoard or OEM

Model Number : TE-QS-75

Certification : CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001

Place of Origin : Shenzhen, CHINA

MOQ : 10

Price : USD850-950/PC

Payment Terms : T/T, L/C

Supply Ability : 10000 units per month

Delivery Time : 30 days

Packaging Details : Carton Package

Model : Interactive Flat Panel Color Side Bar Touch USB Type C Optional 4mm Tempered Anti Glare Glass

Material : Aluminum

Color : Black or Grey or OEM

Operation OS : Mac/Linux/Windows/Andriod

Andriod version : 8.0

Side bar : Optional

Glass thickness : 4mm

Applications : students/businessman/scientist/teachers,etc.

Aspect Radio : 16:10, 16:9...

Interface : USB, VGA, RS232, HDMI

Screen Size : 65",75",86", 98"

Multi-Touch : Up to 40 points

Hotkeys : Two sides hotkeys

Shipping Way : Sea Shipping Air Freight Truck Freight

Touch Points : 20 points

Warranty : 1 year

Power Supply : AC 100-240V, 50/60Hz

Operation System : Andriod/Windows/Linux/Mac.etc.

Accuracy : 2mm

Mobile Stand : Optional

Colors : Black Or OEM

Contact Now

Interactive Flat Panel Color Side Bar Touch USB Type C Optional 4mm Tempered Anti Glare Glass

Specifications:

1. Display type: DLED type 1200:1 panel ratio

2. Supporting touch points:10/20/32/40

3. Operating System: MAC/LINUX/WINDOWS/ANDRIOD

4. Andriod version: 8.0

5. Front keys:POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME

6. Input ports:

HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1;
USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for
Android and PC) x 3; Display Port x1
7.Output ports: AV-Out x1; Headphones out; SPDIF x1; HDMI output

DLED Interactive Multi Touch Display 4mm Tempered Anti Glare GlassDLED Interactive Multi Touch Display 4mm Tempered Anti Glare Glass

DLED Interactive Multi Touch Display 4mm Tempered Anti Glare Glass
Technical data:
Model TE-QS-65 TE-QS-75 TE-QS-86
Display size 1432.5*807.5mm 1653.7*931.9mm 1899*1070mm
Side bar NO NO NO
Front keys
Andriod 8.0:POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME
Input ports
HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1;
USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for
Android and PC) x 3; Display Port x1
Output ports
AV-Out x1; Headphones out; SPDIF x1; HDMI output
Touch points 1/2/4/6/10/20
Aspect ratio 16:9

Model TE-QS-65 TE-QS-75 TE-QS-86
Response time 8ms 8ms 8ms
Voltage
AC(100～240)V-50/60HZ
Support resolution
4K Ultra HD 3840x2160
Screen mode
16:9/4:3/dot to dot/full screen

Packing details:

Model TE-QS-65 TE-QS-75 TE-QS-86
Product size 1487.2*907*93.2mm 1709.4*1031.1*93.3mm 1955.6*1170.8*93.4mm
Packing size 1646*240*1050mm 1873*240*1204mm 2120*240*1353mm
N.W. 42KGS 55KGS 71KGS
G.W. 55KGS 71KGS 94KGS
Packing accessories Touch USB Cable*1,HDMI Cable*1,Power supply Cord*1,Remote controller,Touch pen*2,Warranty card*1
